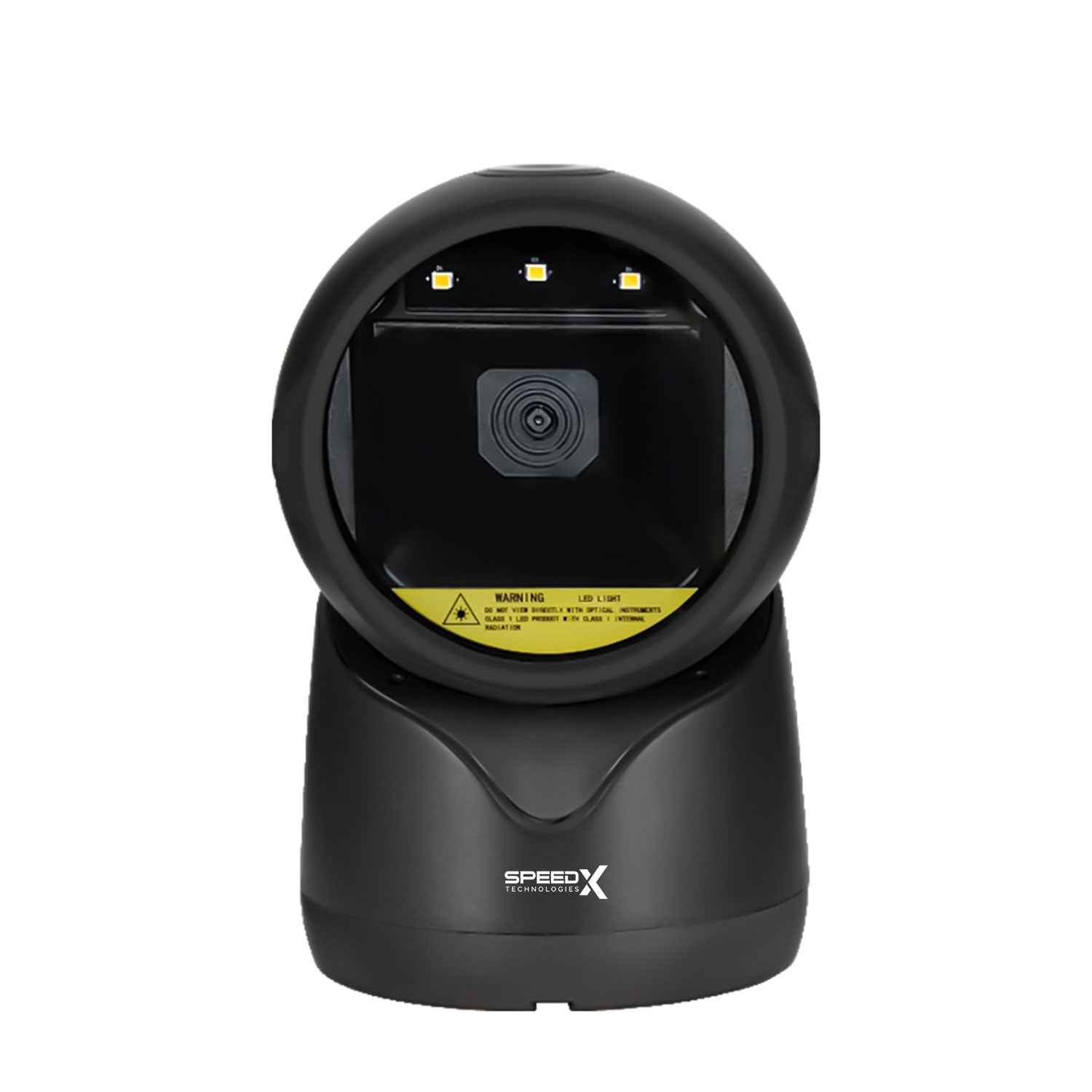

SPEED-X 9600 2D DESKTOP BARCODE SCANNER
2D Barcode Image Scanner
|
Technical Specifications |
|
|
Electrical Characteristics |
|
|
Interface Supported |
USB HID KEYBOARD/USB VCP |
|
Input Voltage |
DC 5V±5% |
|
Current |
Max:335mA |
|
Optical Characteristics |
|
|
Image Sensor |
CMOS Array Sensor |
|
Sensor Resolution |
640 X 480 Pixels |
|
Light Source |
white LED |
|
Decoding speed |
60FPS |
|
Performance Characteristics |
|
|
Scanning Angle |
Pitch angle:±65°;Skew angle:±65°;Tilt angle:±360° |
|
Field of View |
36H),27V) |
|
Min Resolution |
4mil |
|
Min .PCS value |
〉20% UPC/EAN 13（13mil） |
|
Language |
Multiple Languages |
|
Data Edition |
Support for custom data output |
|
Decode Capability |
1D:Codabar,Code39,Interleaved2of5,NEC2of5,Code93 ,Straight 2 of 5 Industial,Straight 2 of 5 IATA ,Matrix 2 of 5 ,Code 11,Code128,GS1-128,UPC-A,UPC-E0,UPC-E1,EAN/JAN-13,EAN/JAN-8,MSI,GS1-DataBar Omnidirectional,GS1 DataBar Limited,GS1 DataBar Expanded , China Post(Hong Kong 2 of 5),GS1 Composite Codes,Codeblock A,Codeblock F,Code 32,EAN/JAN-8,Korea Post 2D：PDF417,QR Code,Data Matrix,Aztec code,HanXin code,MaxiCodeMaxi code,Micro PDF417 |
|
Physical Characteristics |
|
|
Dimensions |
94mm*100mm*152mm(L*W*H) |
|
Weight |
260g |
|
Indicator |
Beeper, LED |
|
Environmental Characteristics |
|
|
Temperature |
-20°∽60°C (operation) -30°∽70°C (storage) |
|
Humidity |
Relative humidity: 5% to 95% (no condensation) |
|
Shock Drop Test |
1.5m drop onto concrete surface |
Decoding Depth of Field
|
Symbology |
Resolution |
Nearest |
Farthest |
|
Code 39 |
5mil |
10mm |
90mm |
|
Code 39 |
13mil |
0mm |
175mm |
|
UPC-A |
3.34mil |
10mm |
170mm |
|
QR |
20mil |
0mm |
130mm |
|
QR |
30mil |
0mm |
180mm |
|
Pay Code（QR 3*3cm） |
- |
10mm |
320mm |
|
Pay Code（QR 2.3*2.3cm） |
