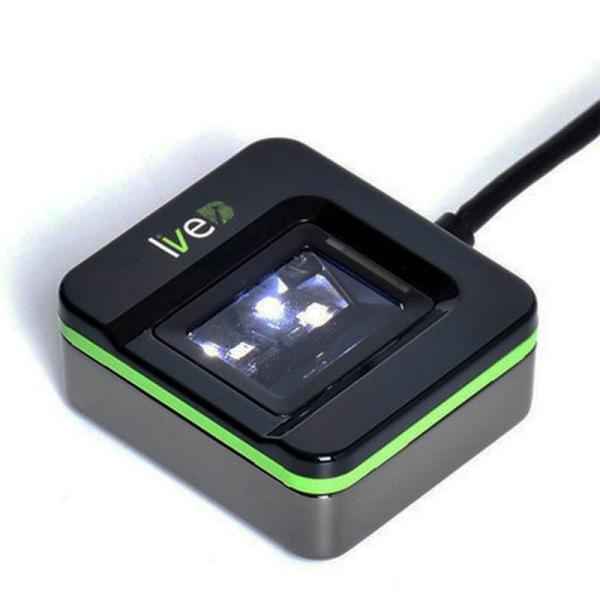

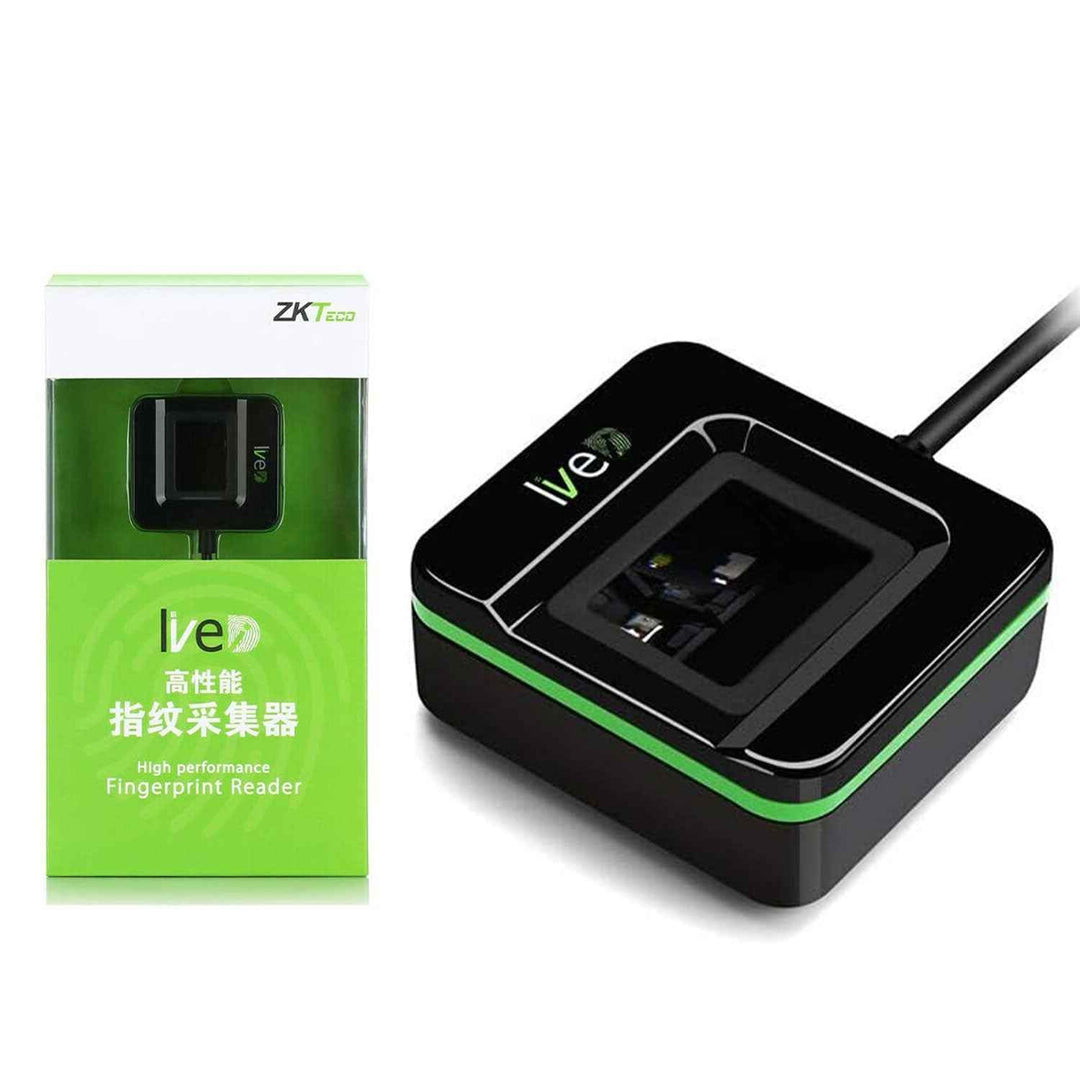

Description: ZKT LIVE20R HIGH PERFORMANCE FINGERPRINT READER SYSTEM SUPPORTED (ANDROID, IOS, WINDOW, LINUX) -

Compact High-Performance Fingerprint Scanner – 500 DPI Optical Sensor

Discover the latest in fingerprint scanning technology with our compact and sleek fingerprint device. Designed for durability and top-tier performance, this fingerprint scanner offers a range of applications in security, attendance, encryption, and more. With a premium solid steel surface and exceptional image quality, this device is perfect for businesses and organizations seeking reliable biometric authentication.

Key Features:

Compact & Stylish: Small, ergonomic design with a solid steel body for durability and a sleek, professional appearance.

Superior Image Quality: Capture high-definition fingerprint images at a resolution of 500 DPI for excellent clarity and detail.

Encrypted Image Data: All fingerprint data is securely encrypted, ensuring privacy and protection.

Advanced Fingerprint Recognition: Rejects fine, fake, or unclear fingerprints for more accurate and reliable scans.

Multi-Angle Support: Supports fingerprint rotation for a flexible scanning experience.

Universal Compatibility: Supports dry, wet, or raw fingers, ensuring high accuracy in various conditions.

Fast & Efficient: With a rapid capture speed of <0.5 seconds, this device enhances user experience and workflow.

Developer Friendly: Comes with a free SDK for easy integration into your systems. Supports languages like C++, VB, Delphi, and more.

Applications:

Social Security & Public Security

Attendance Systems

Fingerprint Encryption

Embedded Applications

Employee Access Control

Security Monitoring

Product Specifications:

Fingerprint Sensor: Optical sensor with film enhancement for better image clarity

Resolution: 500 DPI, 256 gray scale (8-bit) for clear, detailed fingerprint images

Scan Area: 15.24mm x 20.32mm (FAP20 standard)

Image Size: 300x400 pixels

Interface: USB 1.1, backward compatible with USB 1.0, 1.1, and 2.0

Scan Speed: Fast fingerprint capture in less than 0.5 seconds

Rotation Angle: 360° rotation for flexible scanning

Operating Temperature: -20°C to 50°C for reliable performance in varied environments

Operating Humidity: 0-90% for consistent performance in different climates

Operating Systems Supported: Windows (7/8/10/XP/Vista), Linux (32/64-bit), Android, iOS

USB Cable Length: 180 cm for extended reach

Power Supply: 5V ±0.25V via USB interface

Current Consumption:

o Fingerprint Capture: Max 250mA

o Idle Mode: Max 25mA

o Suspension Mode: <0.5mA

Dimensions: 124.5mm x 102mm x 34mm (device size), 49mm x 49mm x 18mm (sensor size)
